Rof Electro-optic modulator 1550nm AM Series Intensity Modulator 40G
Ẹya ara ẹrọ
* Low ifibọ pipadanu
* Ga bandiwidi
* Low idaji-igbi foliteji
* Aṣayan isọdi
Ohun elo
Awọn ọna ṣiṣe ROF
⚫ Pinpin bọtini kuatomu
⚫ Awọn ọna ṣiṣe oye lesa
⚫ Awoṣe ẹgbẹ-ẹgbẹ
| Rof-AM jara | Rof-AM-07 | Rof-AM-08 | Rof-AM-10 | Rof-AM-13 | Rof-AM-15 | |||
| Ipari iṣiṣẹ | 780nm | 850nm | 1064nm | 1310nm | 1550nm | |||
| Bandiwidi | 10GHz | 10GHz | 10/20GHz | 2.5GHz | 50GHz | 10GHz | 20GHz | 40GHz |
| Ipadanu ifibọ | 5dB | 5dB | .5dB | .5dB | .4dB | |||
| Iparun ratio @DC | ：20dB | ：20dB | ：20dB | ：20dB | ：20dB | |||
| VΠ @RF (1KHz) | 3V | 3V | 4V | <3.5V | .6V | <5V | ||
| VΠ @Ajeji | .3.5V | .3.5V | 5V | <5V | <8V | <7V | ||
Bere fun Alaye
| Rof | AM | XX | XXG | XX | XX | XX |
| Iru: AM --- Atunse Ikanra | Igi gigun: 07---780nm 10---1060nm 13---1310nm 15---1550nm | Bandiwidi: 10GHz 20GHz 40GHz 50GHz
| Atẹle PD: PD--- Pẹlu PD | Iru Okun inu-jade: PP---PM/PM
| Asopọmọra opitika: FA---FC/APC FP---FC/PC SP--- isọdi |
R-AM-15-40G
Awoṣe iwọn gigun 1550nm 40GHz Intensity
| Paramita | Aami | Min | Iru | O pọju | Ẹyọ | ||||
| Opitika paramita | |||||||||
| Ipari iṣiṣẹ | l | 1530 | 1550 | 1565 | nm | ||||
| Ipadanu ifibọ | IL | 4 | 5 | dB | |||||
| Opitika ipadanu | ORL | -45 | dB | ||||||
| Yipada ipin iparun @DC | ER @ DC | 20 | 23 | 45 | dB | ||||
| Yiyipo iparun ipin | DER | 13 | dB | ||||||
| Okun opitika | Iṣawọleibudo | Panda PM Fujikura SM | |||||||
| ibudo o wu | Panda PM Fujikura SM | ||||||||
| Okun opitika ni wiwo | FC/PC, FC/APC Tabi olumulo lati pato | ||||||||
| Itanna paramita | |||||||||
| Bandiwidi iṣẹ(-3dB) | S21 | 28 | 30 | GHz | |||||
| Idaji-igbi foliteji Vpi | RF | @50KHz |
| 4.5 | 5 | V | |||
| Ojuṣaaju | @Ajeji |
| 6 | 7 | V | ||||
| Itanna pada pipadanu | S11 | -12 | -10 | dB | |||||
| Input impedance | RF | ZRF | 50 | W | |||||
| Ojuṣaaju | ZBIAS | 1M | W | ||||||
| Itanna ni wiwo | V(f) | ||||||||
Awọn ipo idiwọn
| Paramita | Aami | Ẹyọ | Min | Iru | O pọju |
| Input opitika agbara | Pninu, Max | dBm | 20 | ||
| Input RF agbara | dBm | 28 | |||
| abosi foliteji | Vbias | V | -15 | 15 | |
| Awọn iwọn otutu ti nṣiṣẹ | Oke | ℃ | -10 | 60 | |
| Iwọn otutu ipamọ | Tst | ℃ | -40 | 85 | |
| Ọriniinitutu | RH | % | 5 | 90 |

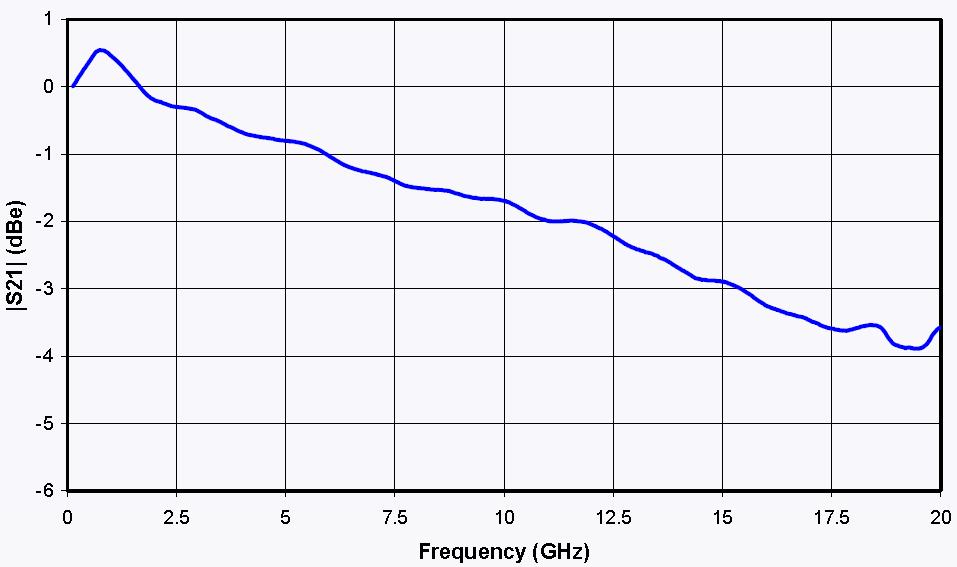

S21 ìsépo
& S11 Igun
S21&s11 ekoro
Mechanical aworan atọka
| PORT | Aami | Akiyesi |
| Ninu | Ojú input ibudo | Fiber PM (125μm/250μm) |
| Jade | Opitika o wu ibudo | PM ati SMF aṣayan |
| RF | RF input ibudo | SMA(f) |
| Ojuṣaaju | Ibudo iṣakoso abosi | 1,2 Iyatọ, 34-N/C |
